Notes Panel Section

The Notes Panel is a floating box pinned near the playback cursor in Learn Mode, and is displayed when the cursor enters the waiting state.

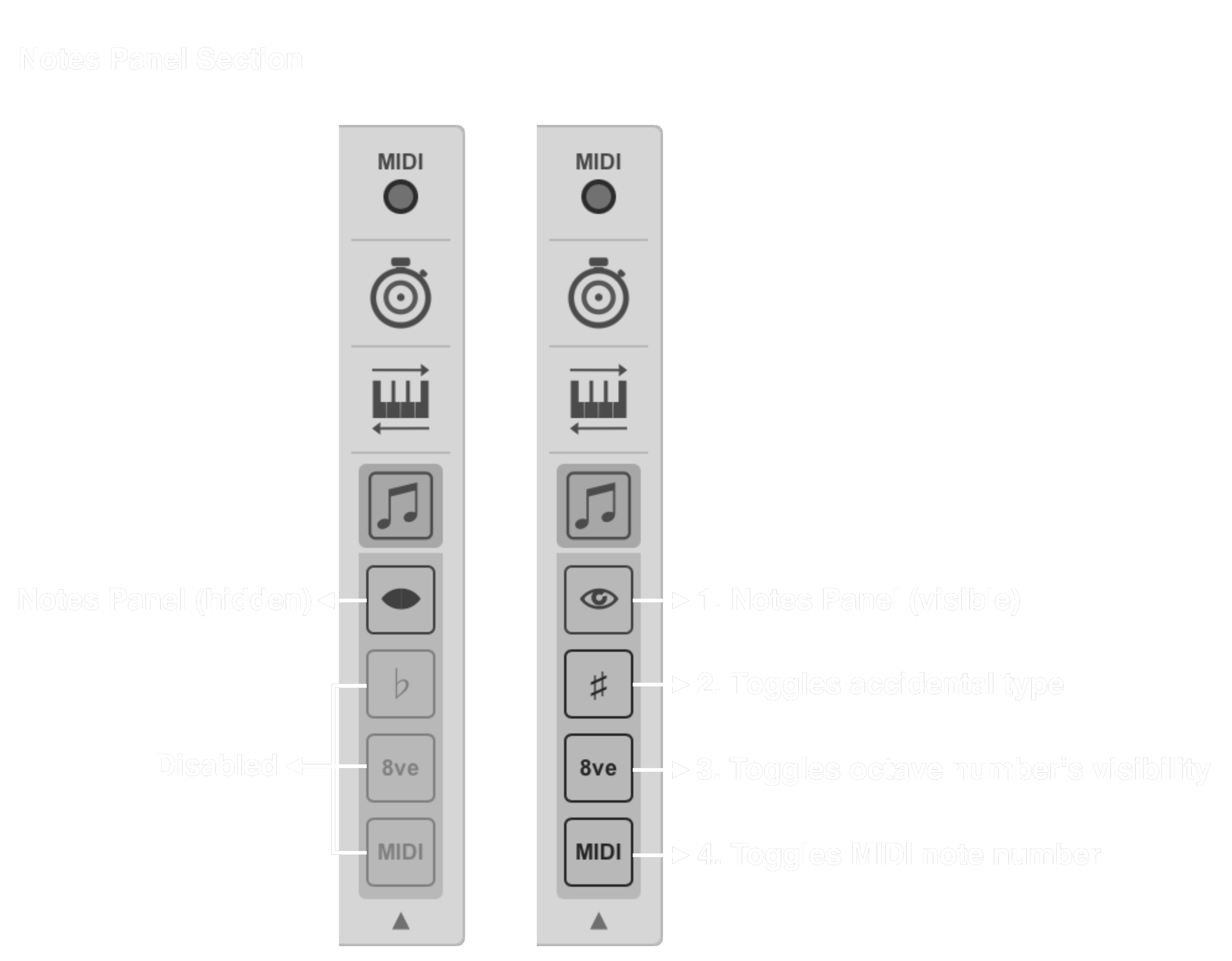

A snapshot of the Notes Panel of Learn Mode’s sidebar

Panel Structure

The Notes Panel consists of two rows:

  1. First Row: Current notes awaiting user MIDI input
  2. Second Row: Incoming external MIDI input

A snapshot of the Notes Panel showing what notes to play

Panel States

  • Waiting State: Left-most snapshot in the figure
  • Incorrect State: Middle snapshot, notes with same border color indicate a single input unit

Notes Panel Section Controls

A snapshot of the Notes Panel showing what notes to play
Notes Panel Section
NoIconName
1Panel Visibility
  • Toggles Notes Panel visibility
  • Useful for testing music reading ability
2Accidental Type
  • Changes between sharps and flats
3Octave Number
  • Displays octave number for awaiting and input notes
4

MIDI Value

  • Shows MIDI note number value underneath displayed notes
  • Useful for verifying MIDI input values from external controllers

The effect of toggling the different controls of Learn Mode’s Notes Panel sidebar’s section on the displayed notes in the Notes Panel box
